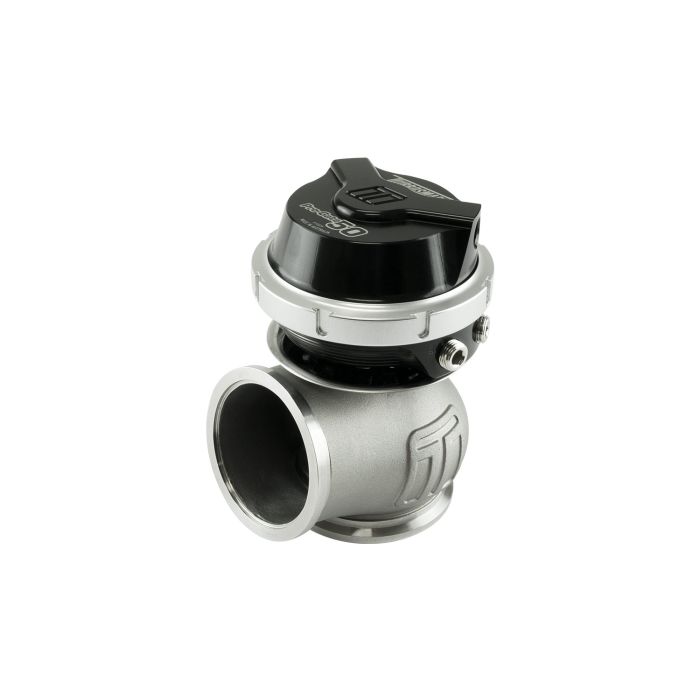

GenV WG50 ProGate50 7psi Black

The Gen-V WG50 Pro-Gate50 external wastegate is a cost effective, high performing 50mm external wastegate. The Gen-V provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity. A direct fit upgrade to all 4th-generation Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base, strap-type V-band clamps, liquid-cooling, 1/8″ NPT ports, and are provided with a range of springs. Available in Compressed Gas configuration Product features summary: • Liquid cooling provision • Strap type V-band clamps • User adjustable actuator position • Modular actuator design • Compressed Gas configurations available Included in the Box: • Wastegate unit (pre-assembled with spring as per order) • SS316 Valve seat • Inlet V-Band • Inlet SS304 weld flange • Outlet V-Band • Outlet SS304 weld flange • Collar tool (master/slave) • 17/7 PH 3, 5, 7, 14 psi spring kit (1x spring installed) • 4x 1/8” NPT plugs (1x installed) / 2x 1/8” NPT nipples • Sticker • Instruction card Tech Bulletins: TS-055X-101X Gen V Wastegate (STD_Msport_HP Config).pdf Tech Bulletins: Data Sheet Gen-V WG50.pdf
